Collaborative Research: Three-Dimensional Mapping of Solid Oxide Fuel Cell Electrodes: Processing, Structure, Stability, and Electro-chemistry

Collaborators: Hsun-Yi Chen, Katsuyo Thornton, S. Barnett, P.W. Voorhees, V. Dravid
Sponsor: NSF DMR-0542619
The solid oxide fuel cell (SOFC) is one of the most promising clean energy converting devices because of its low pollutant emissions, superior operation tolerance, and high conversion efficiency. The lifetime of commercially viable SOFCs is on the order of 50,000 hours. Therefore, understanding of the degradation mechanisms of SOFCs is crucial. The microstructure of a SOFC anode coarsens to reduce surface and interfacial energies during operation. Coarsening degrades the efficiency of SOFCs because electrochemically active regions such as three-phase boundaries (TPB) decrease in size. We use a phase-field model to simulate the microstructural evolution of a three-phase anode. Important parameters, such as TPB lengths and tortuosity, and their temporal variations are obtained as a function of time. Experimentally acquired 3D reconstructions of electrodes provide the initial microstructural data. By combining experimental studies of the same system performed by our collaborators (S. Barnett, P.W. Voorhees and V. Dravid at Northwestern and S. Adler at Univ. of Washington), we aim to gain quantitative understanding of coarsening effects in SOFC electrodes through simulations.
Highlights (Click an image for more information)

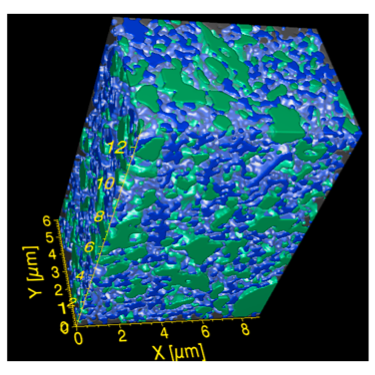

  • Three-Dimensional Mapping of Solid Oxide Fuel Cells

    Solid oxide fuel cells (SOFCs) have been increasingly used in a wide range of applications. The life time of commercially viable SOFCs is on the order of 50,000 hours. Therefore, understanding of the degradation mechanisms of SOFCs is crucial. We use a phase-field model to simulate the microstructural evolution of a three-phase anode. Experimentally acquired 3D reconstructions of electrodes provide the initial microstructural data. In comparison with the coarsening experimental results, we aim to gain a quantitative understanding of coarsening effects in SOFC electrodes through simulations.
